Glove Box Door Install

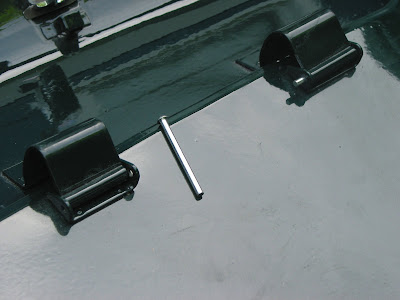

Note the correct rivets for the hinges for the glove box door. I spoke with Mic at Scooter Shop an he often makes rivet hinges out of nails. I have been told that the P200 also uses rivets and the ends were bent so they don't slide out. I do not know this for fact, but decided to bend my rivet ends as opposed to cutting and rounding off. After all, unless you stick your head inside the glove box you won't see it ever.
I used a thick headed chisel to bend the softer rivets, but please note that needle nose pliers would have been a smarter and safer option if you choose this method. The reason is the hinge frames that is welded to the glove box inner is a solid surface and when I hammered down on the tip of the rivet it caused HARD vibrations to travel through the hinge frames. The metal of the glove box is thin and it caused "star" cracks in the paint. Which pissed me off, because I know how delicate paint is and had just completed installing the gas tank and tightened everything by hand and finished off with a screwdriver with ratchet attachment to protect the paint and not over correct. In the end, I was very careful beneath the seat (gas tank) and not careful enough on the visible glove box.

Pictured above is the completed glove box with the rubber trim to silence the glove box door from vibrating. I still need to glue that trim in place with a 3M adhesive. The secret is to use a lot less than you think you need.

Thanx to Max at ScooterWest for the $.90 cent rivets, the correct rear brake switch, and the glove box door trim.
